Feature

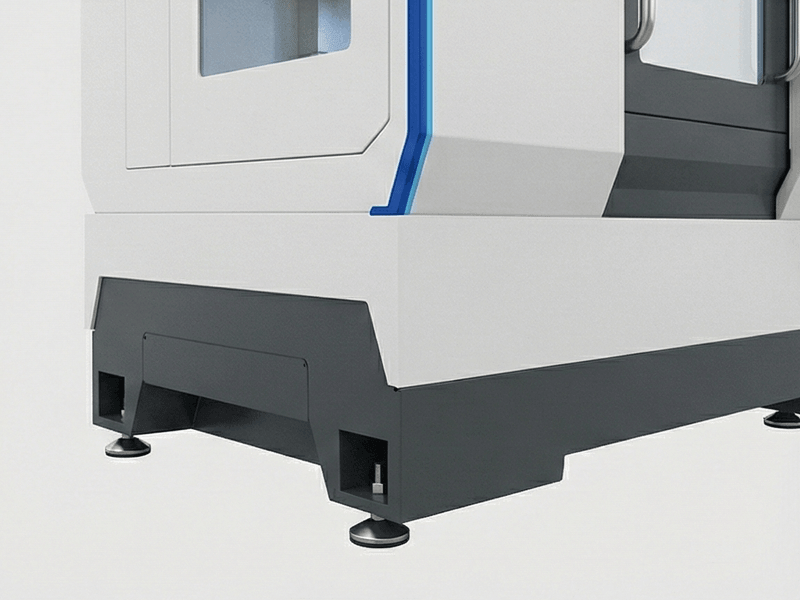

- High-grade Meehanite cast iron structure for superior stability and vibration damping.
- Advanced thermal compensation system ensuring sub-micron positioning accuracy.
- High-speed 15,000 RPM spindle designed for exceptional surface finish quality.
- Rapid automatic tool changer (ATC) with a 1.5-second tool-to-tool exchange time.

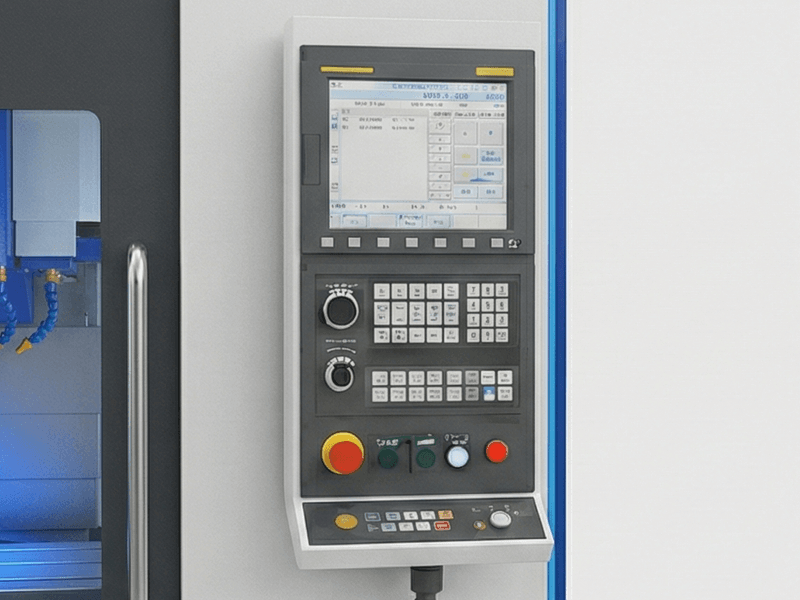

- Intuitive smart control interface for simplified multi-axis programming and monitoring.
Description

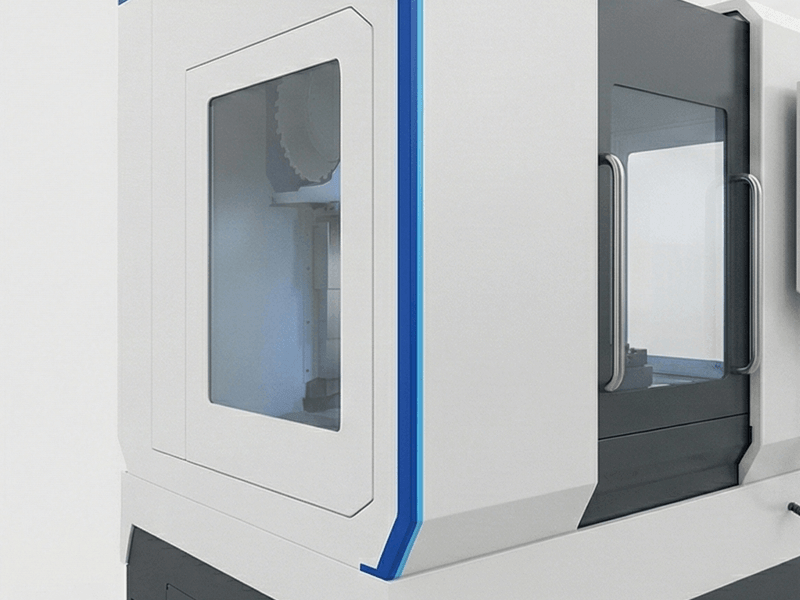

Engineered for perfection, our High-Precision Vertical Machining Center (VMC) is designed to meet the rigorous demands of industries requiring ultimate accuracy and superior surface finishes, such as aerospace and medical manufacturing. Built on an ultra-rigid Meehanite cast iron base, this machine ensures exceptional stability and outstanding vibration damping. It features a high-speed 15,000 RPM spindle combined with advanced thermal compensation technology, guaranteeing sub-micron positioning accuracy even during long operational cycles. The integrated smart control interface simplifies complex tasks, maximizing both precision & production efficiency. This VMC is the definitive solution for achieving high-standard, zero-error manufacturing results.
Specification
| Technical Items | Specifications |
|---|---|
| X/Y/Z Axis Travel | 600 X 450 X 500 mm |
| Spindle Speed | 12,000 RPM (Optional 15,000 RPM) |
| Table Size | 700 X 450 mm |
| Max. Table Load | 350 kg |
| Spindle Taper | BT-40 |
| ATC Capacity | 24 Tools |
| Tool-to-Tool Change Time | 1.5sec |
| Positioning Accuracy | ± 0.005 mm |
| Repeatability Accuracy | ± 0.003 mm |
| Rapid Feedrate (X/Y/Z) | 36 / 36 / 30 m/min |
| Machine Weight | 4,500 kg |

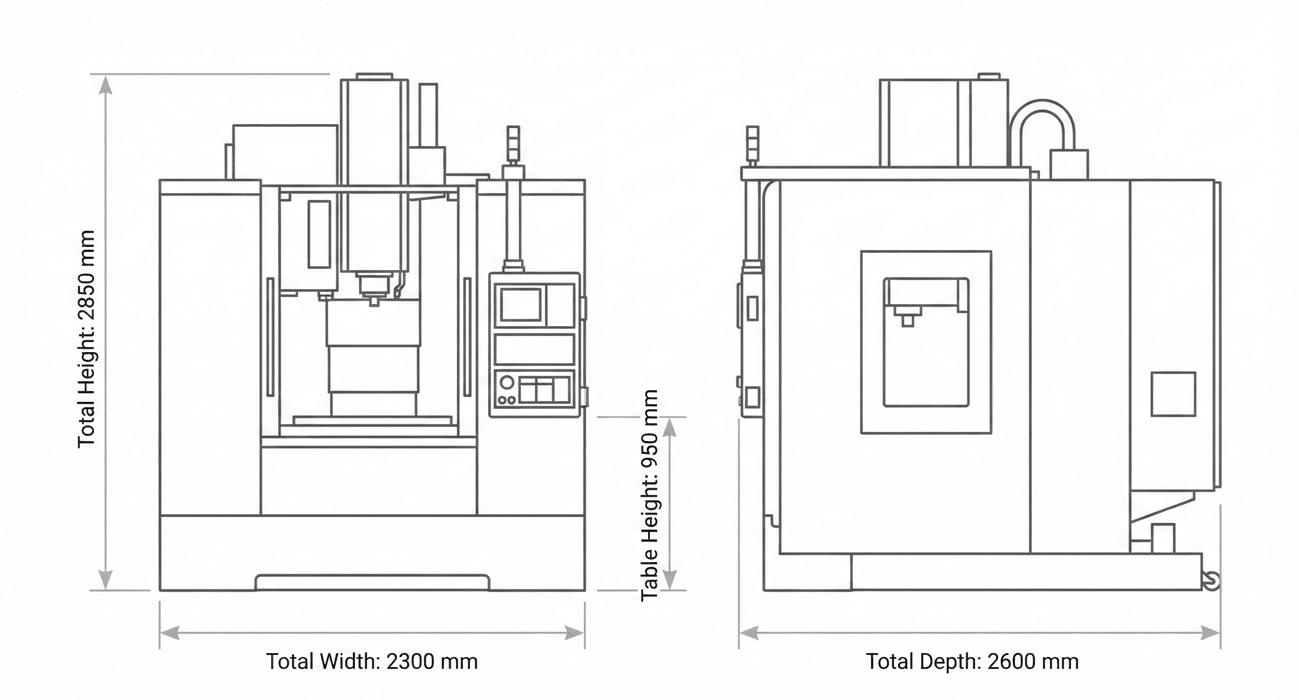

Dimension
